This hub by Delock can be installed into a 3.5? bay of the PC. It will be connected internally via a USB 3.0 pin header male on the motherboard. Up to four USB devices, as e.g. docking stations, card reader, external enclosures etc. can be connected.
Τεχνικά χαρακτηριστικά:
Connectors:
external:
4 x USB 3.0 Type-A female
internal:
1 x USB 3.0 Type-A female
1 x 4 pin plug
Chipset: Genesys Logic GL3520
Data transfer rate up to 5 Gbps
Cable data:
1 x USB 3.0 Type-A male to 1 x 19 pin USB 3.0 pin header female,
length ca. 74 cm (without connectors)
1 x power cable 4 pin female to 1 x SATA 15 pin plug,
length ca. 17 cm (without connectors)
Colour: black
Plug & Play
Dimensions (LxWxH): ca. 102 x 95 x 26 mm
Απαιτήσεις συστήματος:
Linux Kernel 3.17 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free 3.5? bay
Motherboard with a free 19 pin USB 3.0 pin header male
Power supply with SATA 15 pin receptacle
Περιεχόμενα συσκευασίας:
3.5” Hub USB 3.0
USB 3.0 cable
Power cable

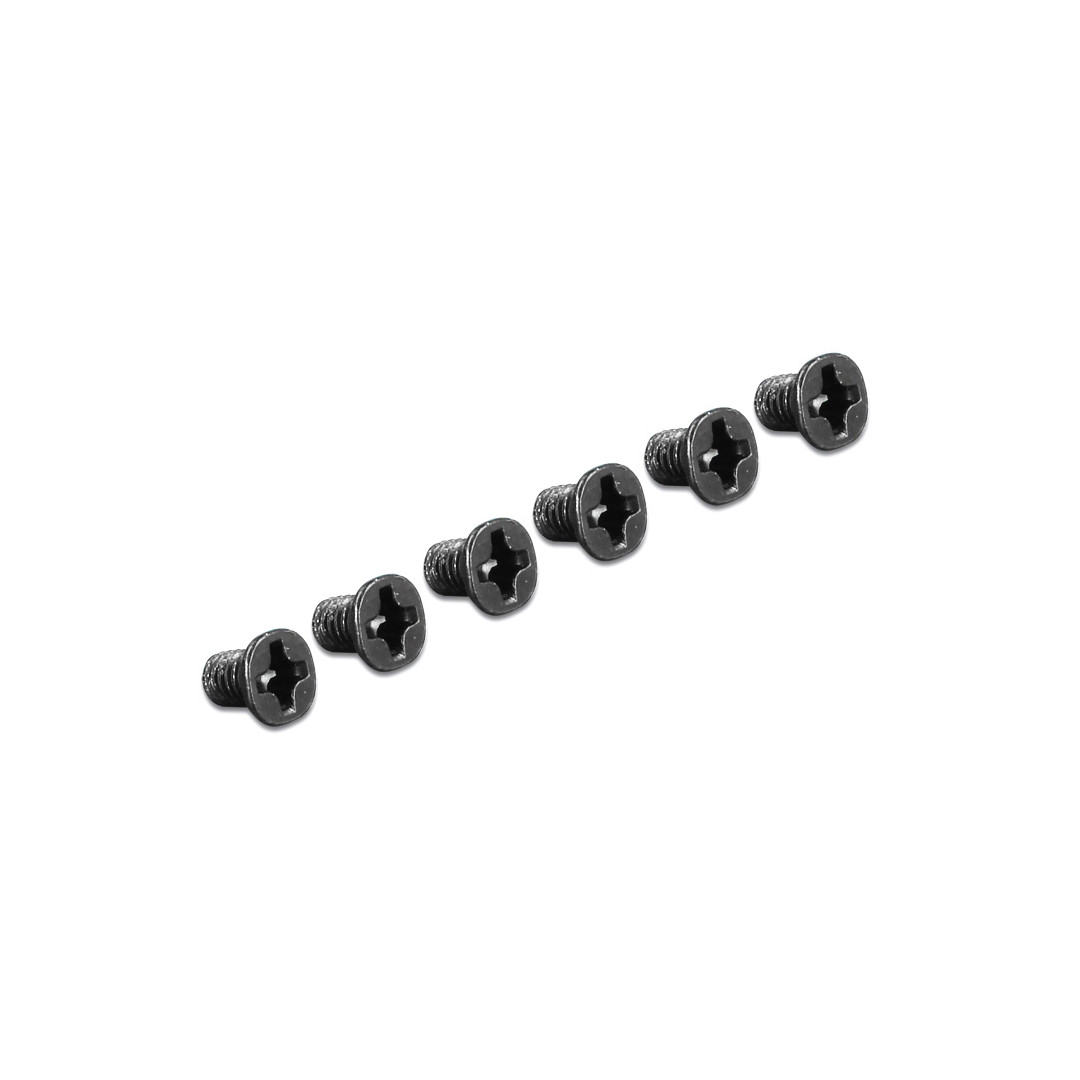

Screws
User manual
Συσκευασία: Retail Box
