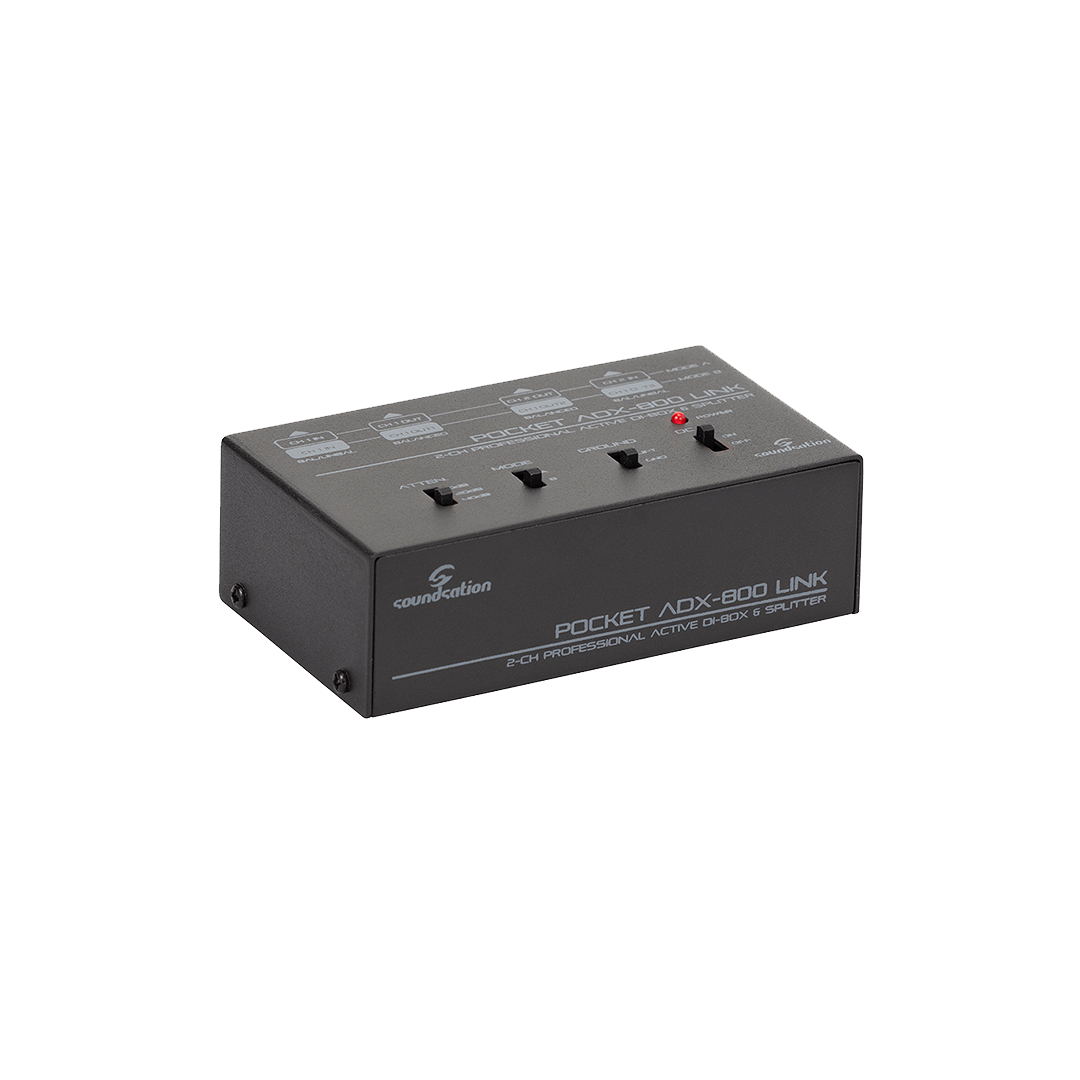

SOUNDSATION ADX-800 Active 2-Channel Splitter DI Box

2 Channels DI-Box Operation

1 Channel Splitter function with max 3 Outputs

TRS 1/4” Jack Outputs

Balanced XLR Outputs

0/20/40dB Attenuation

Operable via external Power Adapter (supplied) or external Phantom Power

Ground Loop selector

Frequency Response  10Hz-30KHz ±1dB

Max Input Level  15 dBU ±1dB

Noise Level  -65dBU

Attenuation Pad   0dB/-20dB/-40dB

Modes  2-Channel/Link

Phantom Power (In case of power from balanced XLR connection)   +48Vdc

Power Adapter (included)   12Vdc/100mA min.

Consumption   2.3mA

Unit Size   112x65x36 mm

Unit Weight  260g

Carton Size   130x150x40 mm

Carton Gross Weight   400g (including DI-Box and Power Adapter)
