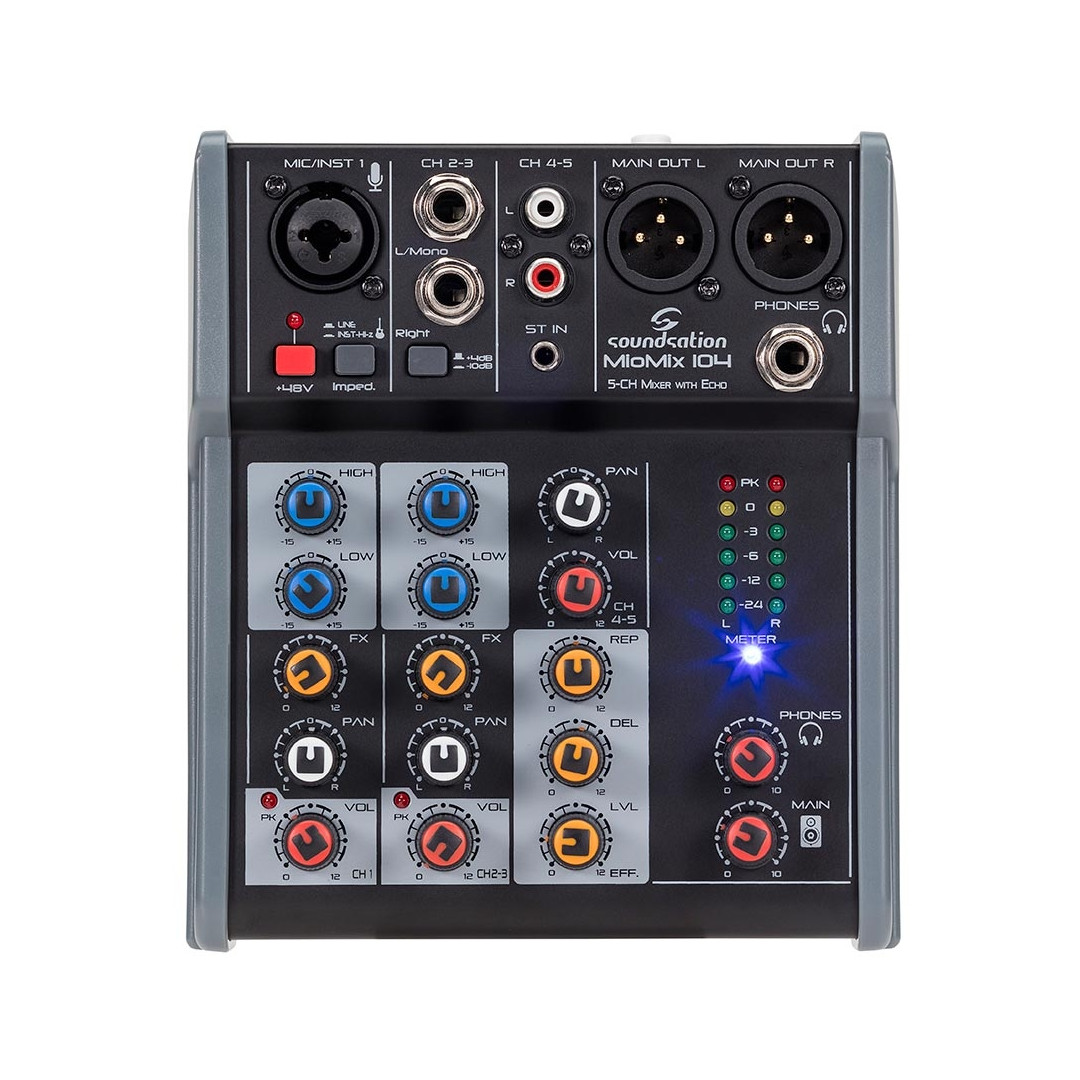

SOUNDSATION MIOMIX 104 Κονσόλα ήχου

5 Total Channels

1 Mic/Line channel with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator

1 Stereo Line Channel with ?” Jack inputs, +4/-10dB Pad Adapter and Peak Indicator

1 Stereo Line Channel with RCA and 1/8” Stereo Mini-Jack

2-Band EQ on channels from 1 to 3

Digital Echo Effect with Repetition, Delay and Level adjustment

Headphone monitor out with level control

XLR Main Outputs with Master Level Control

Stereo 6-Led VU Meter Bar

Rugged and Lightweight Metal Case for Maximum Flexibility and Portability

SPECIFICATIONS

Input Connections Balanced XLR/Jack Combo (Channel 1). Balanced ?” Jack (Channel 2-3). Stereo RCA, Stereo 1/8” Mini-Jack (Channel 4-5)

Output Connection Balanced XLR (Main Out L-R). Stereo ?” Jack (Phones)

Channel 1 Functions +48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator

Channel 2-3 Functions Impedance switch (+4/-10dB), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator

Channel 4-5 Functions Pan Position, Channel Volume

Effect Functions Echo Repetition Adjustment, Echo Delay Time Adjustment, Echo Level Adjustment

Level Meter 2×6 LED Meter

Max Output Level 3 Vrms

Frequency Response +/-0.5dB, 20Hz-20kHz

Dynamic Range 102dB

THD+N @ 1kHz =0.003%

Stereo Crosstalk 92dB

Power Requirements DC 5V, 0.5A

Power Consumption Max. 2.5W

Net Weight 0.89kg
