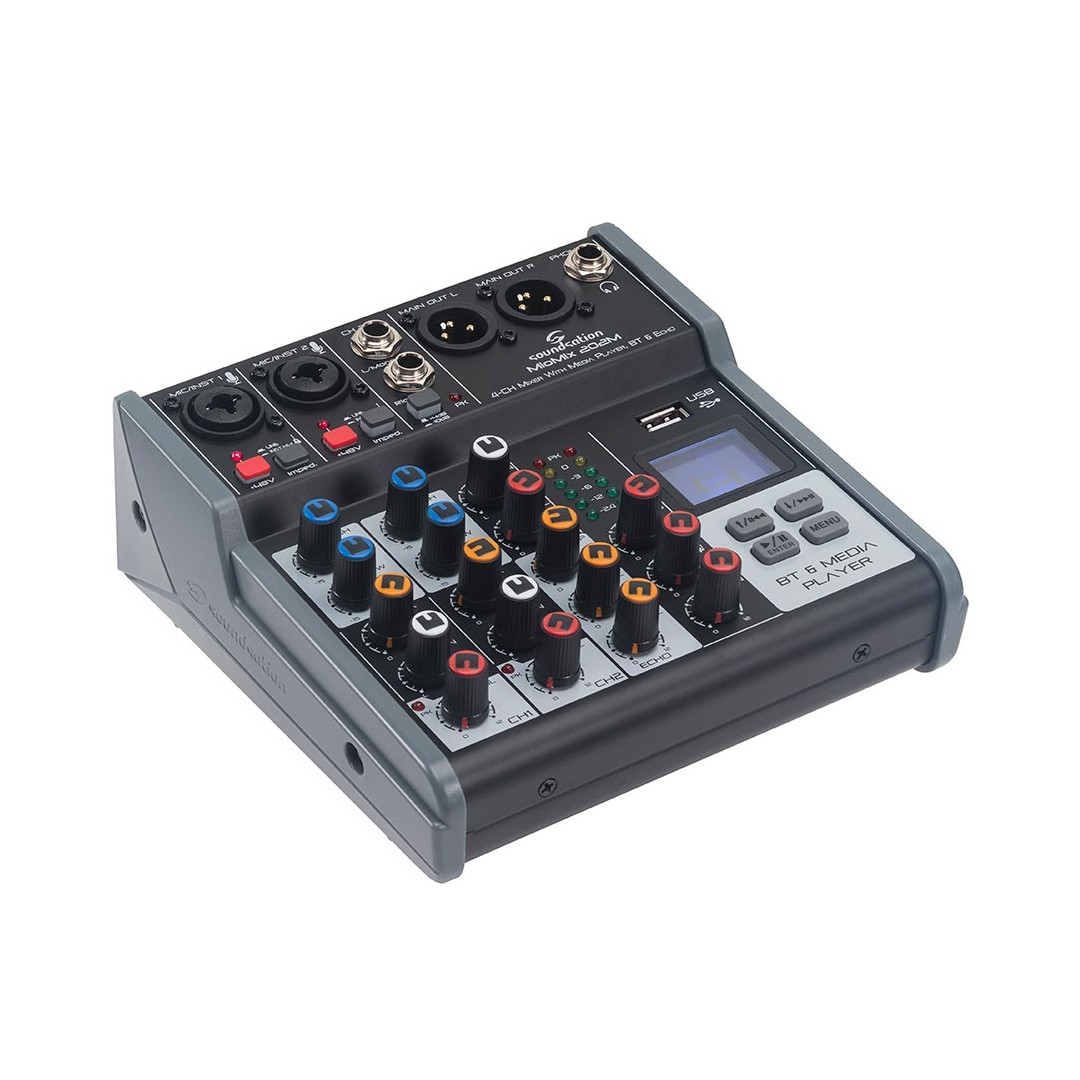

SOUNDSATION MIOMIX 202M Κονσόλα ήχου

4 Total Channels

2 Mic/Line channels with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator

1 Stereo Line Channel with ?” Jack inputs, +4/-10dB Pad Adapter and Peak Indicator

USB Media Player and Recorder (WAV, MP3, WMA, FLAC and BT wireless audio streaming)

2-Band EQ for channels 1 and 2

Digital Echo Effect with Repetition, Delay and Level adjustment

Media Player output level control

Headphone monitor out with level control

XLR Main Outputs with Master Level Control

Stereo 6-Led VU Meter Bar

Rugged and Lightweight Metal Case for Maximum Flexibility and Portability

SPECIFICATIONS

Input Connections Balanced XLR/Jack Combo (Channel 1-2), Balanced ?” Jack (Channel 3-4)

Output Connection Balanced XLR (Main Out L-R), Stereo ?” Jack (Phones)

Channel 1-2 Functions +48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator

Channel 3-4 Functions Impedance switch (+4/-10dB), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator

USB Player Buttons Up/Rewind, Down/Forward, Play/Pause/Enter, Menu

USB Player Functions BT streaming, Music Player, Audio Recording, EQ-Curve Selection

USB Drive Format FAT32 format – max 64GByte

Player File Formats WAV, MP3, WMA, FLAC e streaming audio wireless BT

Recorder File Format MP3 (48kHz/16bit @ 128Kbps)

Effect Functions Echo Repetition Adjustment, Echo Delay Time Adjustment, Echo Level Adjustment

Level Meter 2×6 LED Meter

Max Output Level 3 Vrms

Frequency Response +/-0.5dB, 20Hz-20kHz

Dynamic Range 102dB

THD+N @ 1kHz =0.003%

Stereo Crosstalk 92dB

Power Requirements DC 5V, 0.5A

Power Consumption Max. 2.5W

Size (WxDxH) 166 x 165 x 66 mm

Packing Size (WxDxH) 300 x 208 x 87 mm

Net Weight 0.9 kg

Gross Weight 1.2 kg
