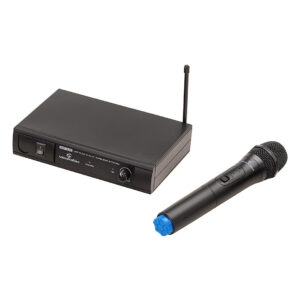

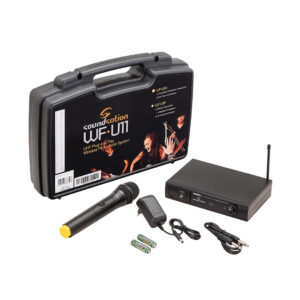

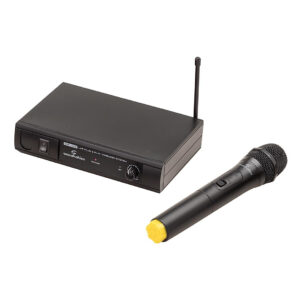

SOUNDSATION WF-U11HD UHF Plug & Play Hand-Held Wireless Microphone System (Freq. 865.00 MHz)
UHF Transmission with SMD Technology
4 available Frequencies in free-license ISM Europe Band
Simple user Interface for plug and play setup
30m ideal distance (without obstacles)
Handheld microphone with high-quality dynamic cardioid capsule
Carrier Frequency: UHF 863-865MHz
Available Frequencies: 863.05 MHz, 864.15 MHz, 863.55 MHz, 865.00 MHz (WF-U11HD Freq. is 865.00 MHz)
Frequency Stabilization: Automatic calibration
Dynamic Range: > 90dB
Total Harmonic Distortion: < 0.5%
Frequency Response: 40 ? 18500 Hz / ±3dB
Packing Dimensions (WxHxD): 436 x 104 x 324 mm
Packing Gross Weight: 2.0 kg
Power Supply: DC12V, 400mA
Consumption: < 4W
Signal/Noise Ratio: > 95dB
Border Upon Channel Rejection: > 80dB
Receiving Sensitivity: 10dBuV
De-Emphasis: 75uS
Audio Output Level: Balanced 400mV; Unbalanced 400mV
Dimensions (WxHxD): 211 x 43 x 115 mm (antennas not incl.)
Antenna: 120 mm (not bent)
Net Weight: 0.295 kg
Transmitter Power: 10mW
Modulation Type: FM
Deviation: 37KHz
Spurious Emission: > 30dB
Battery Voltage: 3V (2×1.5V AA-Type Batteries)
Continuous Using: 5 hours
Hand-held Mic. Dimensions (W/DxH): Ψ33 (min) – Ψ48 (max) x 240 mm
Hand-held Mic. Net Weight: 0.218 kg (batteries included)
